High Precision GNSS RTK Antenna for Farm Machinery

Name: High Precision GNSS RTK Antenna for Farm Machinery
Brand: RIDA Antennaer
Price: 1 USD

Quality High Precision GNSS RTK Antenna for Farm Machinery for sale

Size : 185x150mm

Connector : TNC or Customized

Place of Origin : Guangdong, China

Polarity : RHCP

Packaging Details : opp bag single pcs

Service : OEM/ODM

MOQ : 100

Connectivity : customized

Supply Ability : 400000pcs per month

Model Number : RG01100C

Cable : RG58 5meters

VSWR : <1.5

Application : ariculture, mapping

Gain : 30±2dB / 40±2dB

Base : magnetic

Impedance : 50Ω

Frequency : GNSS GPS(L1,L2,L5) BDS( B1,B2,B3) GLONASS(G1,G2,G3)

Brand Name : RIDA Antennaer

Material : PC(nti - ultraviolet)

Delivery Time : 10-15days

Type : GPS/GNSS Antenna

Certification : ISO9001/IATF16949

Contact Now

Products Description L1 L2 L5 Tri-Band GNSS Antenna + L Band

It covers tri-band GPS/QZSS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo- El/E5a/E5b/E6, BeiDou-B1/B2/B3, as well as L-band correction services. It is designed for precise tri-band positioning.

The antenna is ideally suited for precision agriculture, self-driving vehicle tracking and guidance, and other applications where accuracy is critical. The antenna has excellent multipath signal rejection, linear phase response, and tight phase center variation.

Applications

- Autonomous Vehicle Tracking and Guidance

- Positive Train Control (PTC)

- Positive Train Location (PTL)

- GNSS Precision Positioning

- Precision agriculture

- Tri-band RTK and PPP receivers

- Law enforcement and public safety

Benefits

- Excellent interference suppression

- Excellent multipath rejection

- Higher system accuracy

- Excellent signal-to-noise ratio

- Fast satellite reception speed

High Precision GNSS RTK Antenna for Farm Machinery

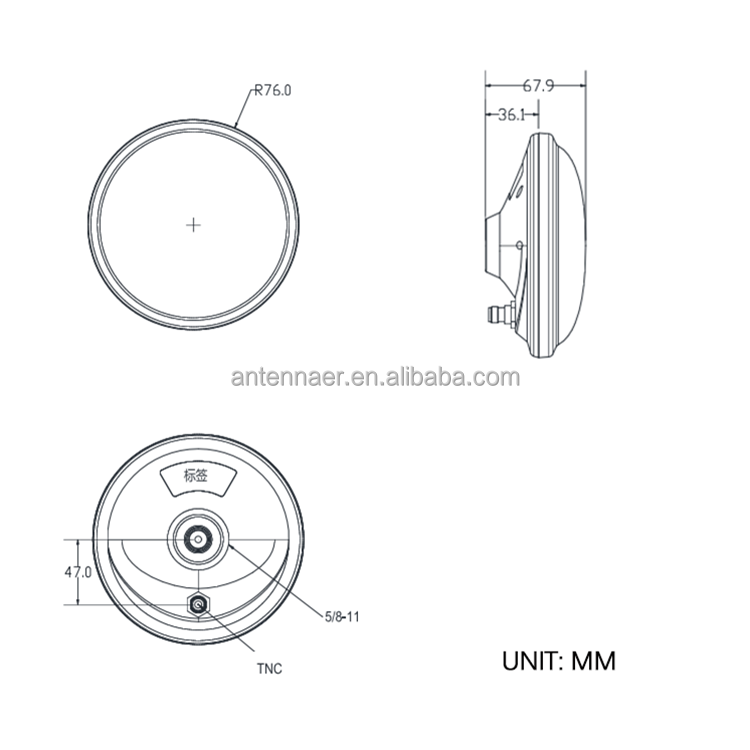

Structural Dimensions & Performance Diagrams

( Accept OEM/ODM)

Product Parameters & Customizable Range

ANTENNA
Patch Architecture	Dual Four-point-feed
Supported positioning signal bands	GPS:L1/L2/L5;
		BDS:B1/B2/B3;
		GLONASS:G1/G2/G3;
		Galileo:El/E5a/E5b/E6
Peak Gain*	≥5.0dBi@Fc
Polarization	RHCP
Axial Ratio@zenith	≤ 1.5dB
Azimuth Coverage	360°
Impedance	50 ohm
Phase-center accuracy	≤2.0mm
Phase-center repeatability	≤ 1.0mm
LNA
Frequency Range	1170MHz~1290MHz
Frequency Range		1559MHz~1605MHz
LNA Gain*	40±2.0dB (Typ. @25°C)
Group Delay variation	≤ 15ns
Noise Figure*	≤2 0 dB@25°C , Typ (Pre-filtered)
Output VSWR	≤ 1.8:1 typ. 2.0:1max
Operation Voltage	3.0~ 16V DC
Operation Current	≈45mA
MECHANICALS & ENVIRONMENTAL
Dimension	Φ152mm*67.9mm
Connector	TNC ( Female)
Radome	PC+PBT
Weight	≈350g
Operating Temp	－40℃~＋85℃
Storage Temp	－45℃~＋85℃
Humidity	95% No-condensing
Waterproof	IP67

High Precision GNSS RTK Antenna for Farm Machinery Images
